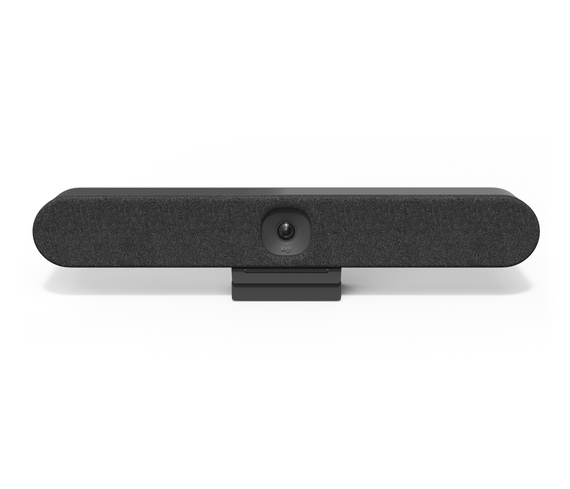

Logitech Rally Bar Huddle

Dimensions and Weight

• Width: 21.6 inches (549.6 mm)
• Height: 3.1 inches (78.9 mm)
• Depth: 3.0 inches (76.0 mm)
• Weight: 3.97 pounds (1.8 kg)

Camera

• Resolution: 4K
• Zoom: 4x HD digital zoom
• Field of View:
• Diagonal: 120°
• Horizontal: 113°
• Vertical: 80°
• Digital Pan: ±48° at 4x zoom
• Digital Tilt: ±32° at 4x zoom

Audio

• Microphones: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
• Frequency Response: 90Hz – 16kHz
• Sensitivity: -36dBFS ±1 dB @ 1Pa
• Pickup Range: Up to 23 feet (7 meters)
• Audio Processing: Acoustic Echo Cancellation (AEC), Voice Activity Detector (VAD), AI-based noise suppression
• Speaker:
• Driver: 2.2 inches (55 mm) with bass reflex enclosure and patented suspension design
• Sensitivity: 83 dB SPL @1W ±2dB @ 1 meter
• Rated Power: 8W
• Total Harmonic Distortion (THD): <2% at 1W, 1kHz

Interfaces

• HDMI Out: 1
• HDMI In: 1
• USB Ports:
• 1x Type A USB 3.1
• 1x Type C USB 3.1
• Network: 10/100/1G Ethernet
• Wireless Connectivity:
• Wi-Fi: 802.11a/b/g/n/ac
• Bluetooth® Low Energy

Power and Cables

• Power Supply: Auto-sensing
• Operating Voltage/Power: 100-240V, 19V, 2.1A
• Power Supply Dimensions: 4.48 x 1.85 x 1.27 inches (114 x 47 x 32.3 mm)
• Cables Included:
• DC Cable: 5 feet (1.5 meters)
• AC Cable: 3.3 feet (1 meter)
• HDMI 1.4 Cable: 6.5 feet (2 meters)
• USB A to USB C 3.0 Cable: 7.2 feet (2.2 meters)

Environmental Conditions

• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -13°F to 158°F (-25°C to 70°C)
• Humidity: 10% to 90%

Additional Features

• Built-in Components:
• 6 DMIC microphone array
• Digital PTZ camera
• Full-range ported speaker
• Cable management and retention system
• Multi Mount (supports wall, table, or above display mounting)
• Integrated motorized privacy shutter
• Logitech CollabOS platform
• Device Management: Logitech Sync
• Displays Supported: 1 (support for a second display is coming soon)
• Display Resolution: 1080p

Integrated All-in-One Solution: The Logitech Rally Bar Huddle combines a high-resolution camera, premium speaker, and microphones into a single streamlined device

4K Ultra HD Camera: Delivers crisp, detailed video with wide-angle views and advanced digital pan, tilt, and zoom capabilities

Beamforming Microphone Array: Captures clear audio from up to 23 feet, reducing background noise for enhanced sound quality

Powered by Logitech CollabOS: Simplifies management, updates, and integration with popular video conferencing platforms

Motorized Privacy Shutter: The Logitech Rally Bar Huddle (960-001485) protects users’ privacy with an automatic camera cover when the device is not in use

AI-Enhanced Audio Features: Offers noise suppression and echo cancellation, ensuring professional-grade audio in meetings

Streamlined Collaboration: Combines essential conferencing tools into one device, reducing clutter and simplifying meeting room setups

Exceptional Video Quality: Ensures professional-grade visual clarity with 4K resolution, making virtual meetings more engaging and productive

Crystal-Clear Audio: Provides superior sound pickup and clarity, enabling seamless communication in busy or noisy environments

Effortless Device Management: Logitech CollabOS allows centralized updates and monitoring, saving time for IT administrators

Flexible Room Compatibility: The Logitech Rally Bar Huddle (960-001485) fits perfectly into huddle and small meeting spaces with its compact and modern design

Fast, Easy Setup: Plug-and-play functionality reduces setup time, allowing meetings to start without technical delays

• Rally Bar Huddle
• Multi-Mount
• Power supply
• AC power cord
• HDMI 1.4 cable (6.5 ft / 2 m)
• USB-A to USB-C 3.0 cable (7.2 ft / 2.2 m)
• 3 wall anchors and 3 screws
• Quick start guide printed on the box (no physical booklet)

Is the Rally Bar Huddle compatible with all video conferencing platforms?

Yes, the Logitech Rally Bar Huddle (960-001485) is compatible and certified for the major video conferencing platforms, including Google Meet, Microsoft Teams, and Zoom Rooms. Depend on this all-in-one unit to deliver a reliable, smooth performance with your preferred platform.

Can the Rally Bar Huddle handle larger meeting spaces?

The Rally Bar Huddle is designed for smaller spaces and huddle rooms, but you may be able to use it in slightly bigger environments by utilizing its beamforming mics and wide-angle camera. If you need to scale your video conferencing system further, Logitech recommends incorporating other hardware into your system as needed.

How easy is it to set up the Rally Bar Huddle?

Non-technical users should have no problem getting this device up and running, thanks to its plug-and-play setup that includes pre-configured components, flexible mounting solutions, and concise instructions.

Does the privacy shutter activate automatically?

Yes, when the Logitech Rally Bar Huddle is not in use, the motorized privacy shutter activates automatically to ensure that participants feel comfortable and secure, knowing their privacy is protected.

What is the maximum range of the microphones?

With a maximum pickup range of 23 feet, the beamforming microphones are perfect for small to medium-sized workspaces.

Does it support dual-display setups?

As of January 2025, only a single display is supported. However, Logitech does plan to provide an update for dual-display support in the future.

Can the device connect wirelessly to my network?

Yes, with Wi-Fi and Bluetooth connectivity, you can easily integrate the Logitech Rally Bar Huddle (960-001485) into wireless network setups.
