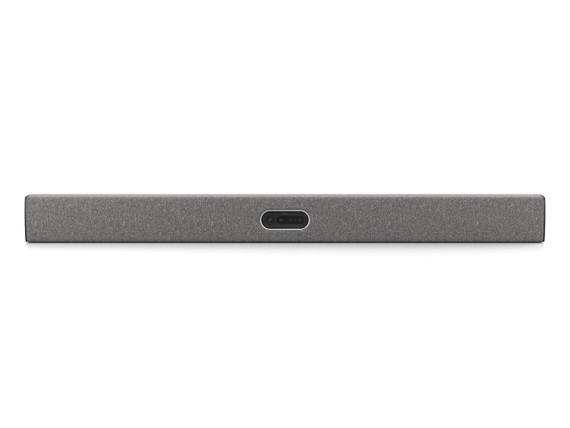

Neat Bar is a simple and elegant, compactly designed yet highly capable meeting room device for Zoom or Microsoft Teams. It's perfect for bringing superior-quality audio and video to your meeting, huddle or focus rooms for up to ten people. You can mount Neat Bar above or below one or two monitors. Includes Bar, integrated camera, microphones and wall, table, and display mounts. *Requires Neat Pad-SE
Specifications:
General
Camera LED
System LED
Accelerometer
Ambient light sensor
Table stand, wall mount and screen mount
Dual screen support
Security lock slot (Kensington compatible)
Secure boot
BYOD mode (USB passthrough)
Native support for Zoom Rooms
Native support for Microsoft Teams Rooms on Android
Sensors for temperature, humidity, CO2 and VOC (*)
Speakerbox for maximal tonal range with minimal distortion
Opposing drivers for vibration cancellation
Dedicated wide-angle ultrasonic tweeter
3 sensor mics
5 microphones angled in an end-fire array
Hardware accelerated audio processing
Beamforming
Echo cancellation
Noise suppression
Automatic gain control
Dereverberation
Video
4x digital zoom (optional 8x digital zoom)
4056×3040 (12 MP) capture resolution
120 degrees horizontal field of view
Automatic people framing
Hardware accelerated video encode and decode
Distortion correction
Noise reduction
Chromatic aberration correction
Automatic white balance and color correction
100-240V ~ 50/60Hz 0.5A
Ambient operating temperature: 32° to 95° F (0° to 35° C)
Storage temperature: -4° to 140° F (-20° to 60° C)
Relative humidity: 10% to 90%
Built-in power supply
Power consumption
Idle: 3,5W
In call: 10-11W
Networking and ports
WiFi
Bluetooth for proximity join in Microsoft Teams
AC Power (internal power supply)
Ethernet
2 × HDMI-out
HDMI-in for screen sharing
USB-C for BYOD mode (USB passthrough) or input when connected to a touch screen (*)
Size and weight
Width: 21.9 inches (556 mm)
Height: 3 inches (76 mm)
Depth: 3 inches (76 mm)
Weight: 3.75 pounds (1.7 kg)
In the box
HDMI cable (6.5 feet / 2 meters)
Ethernet cable (9.8 feet / 3 meters)
Power cord (9.8 feet / 3 meters)
Mount adapter, wall mount, screen mount, table stand, and snap-on mount
4 × M6 screw (0.94 inches / 24mm) for VESA mount
4 × M8 screw (0.94 inches / 24mm) for VESA mount for two screen setup
2 × spacer to secure parallel TV mount
2 mm hex wrench
5 mm hex wrench
1 additional screw bag for dual screen setup
Internet connection
Display (16:9 aspect ratio) with 1080p resolution or better
Licence for Zoom Rooms or Microsoft Teams (**)
Box weights and dimensions
* Feature not yet supported by Microsoft Teams
** Needs to be purchased from Zoom or Microsoft
